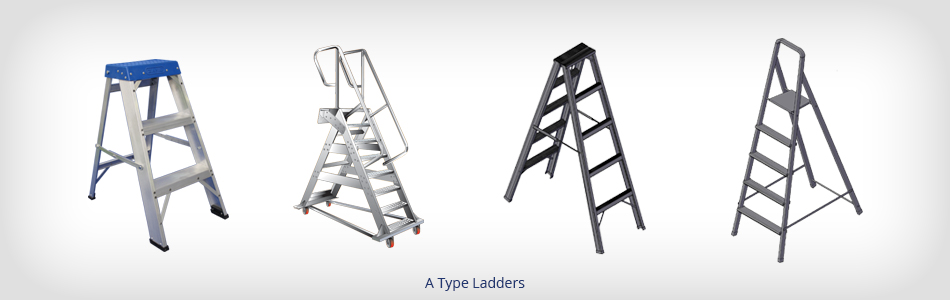

A Type Ladders

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker

a-type-products-1

DPL - DUAL PURPOSE EXTENSION STEP LADDER

Specification


Model No Approx Size(L) Stile Length (L) DIM'A'MM DIM'B'MM Weight
DPL/5 5 to 8.5(ft) 1.52m to 2.60m 453 1000 5.25kg
DPL/6 6 to 10.5(ft) 1.83m to 3.20m 490 1180 6.4kg
DPL/7 7 to 12.5(ft) 2.13m to 3.81m 525 1370 7.4kg
DPL/8 8 to 14.5(ft) 2.44m to 4.42m 558 1550 8.5kg
DPL/9 9 to 16.5(ft) 2.74m to 5.10m 595 1785 9.45kg
DPL/10 10 to 18.5(ft) 3.05m to 5.64m 630 1970 10.95kg
DPL/12 12(ft) 3.70m 705 2350 13.65kg
DPL/14 14(ft) 4.30m 770 2810 16.65kg
DPL/17 17(ft) 5.20m 885 3430 21.1kg

DPFL - DUAL PURPOSE EXTENSION STEP LADDER WITH SPECIAL TOP LANDING

Specification


Model No Approx Size(L) Stile Length (L) DIM'A'MM DIM'B'MM Weight
DPFL/5 5 to 8.5(ft) 1.52m to 2.60m 453 1000 5.40kg
DPFL/6 6 to 10.5(ft) 1.83m to 3.20m 490 1180 6.55kg
DPFL/7 7 to 12.5(ft) 2.13m to 3.81m 525 1370 7.55kg
DPFL/8 8 to 14.5(ft) 2.44m to 4.42m 558 1550 8.65kg
DPFL/9 9 to 16.5(ft) 2.74m to 5.10m 595 1785 9.6kg
DPFL/10 10 to 18.5(ft) 3.05m to 5.64m 630 1970 11.1kg
DPFL/12 12(ft) 3.70m 705 2350 13.80kg
DPFL/14 14(ft) 4.30m 770 2810 16.80kg
DPFL/17 17(ft) 5.20m 885 3430 21.1kg

JSL - JUNIOR STEP LADDER

Specification


Model No Approx Size(L) Stile Length (L) DIM'A'MM DIM'B'MM Weight
JSL/2 2.4(ft) 0.75m 390 615 2.8kg
JSL/3 3.2(ft) 1m 435 760 3.5kg
JSFL/3 2.4(ft) 0.75m 390 615 2.8kg
JSFL/4 3.2(ft) 1m 435 760 3.5kg

DSL - DOMESTIC STEP LADDER

Specification


Model No Approx Size(L) Stile Length (L) DIM'A'MM DIM'B'MM Weight
DSL/4 4(ft) 1.22m 415 915 3.5kg
DSL/5 5(ft) 1.52m 453 1105 4.45kg
DSL/6 6(ft) 1.83m 490 1305 5.05kg
DSL/7 7(ft) 2.13m 525 1495 6kg
DSL/8 8(ft) 2.44m 558 1693 6.95kg
DSL/10 10(ft) 3.05m 630 2100 8.8kg
DSFL/4 4(ft) 1.22m 415 915 3.5kg
DSFL/5 5(ft) 1.52m 453 1105 4.45kg
DSFL/6 6(ft) 1.83m 490 1305 5.05kg
DSFL/7 7(ft) 2.13m 525 1495 6kg
DSFL/8 8(ft) 2.44m 558 1693 6.95kg
DSFL/10 10(ft) 3.05m 630 2100 8.8kg

LSL - LIGHT ALUMINIUM LADDER

Specification


Model No Approx Size(L) Stile Length (L) DIM'A'MM DIM'B'MM Weight
LSL/4 4.5(ft) 0.95m 465 690 3.6kg
LSL/5 5.4(ft) 1.18m 495 880 4.3kg
LSL/6 6.1(ft) 1.43m 525 1020 5.1kg
LSL/7 6.9(ft) 1.66m 560 1150 5.5kg
LSL/8 7.6(ft) 1.90m 585 1295 6.45kg

SDPL - SQUARE RUNG DUAL PURPOSE STEP/EXT.LADDER

Specification


Product Specification For Single Straight Ladders
Model SDPL - 9 SDPL - 11 SDPL - 14 SDPL - 16 SDPL - 18 SDPL - 20 SDPL - 21
Number of Rungs 18 22 28 32 36 40 42
Extended Length Meter 4.62 5.19 6.03 6.31 7.43 7.99 8.29
ft. 15.16 17.02 19.79 20.7 24.38 26.21 27.2
Folded Length Meter 2.6 3.17 4.01 4.57 5.13 5.69 6
ft. 8.56 10.04 13.16 15 16.83 18.66 19.68
Step Intervals Meter 280 280 280 280 280 280 280
ft. 0.92 0.92 0.92 0.92 0.92 0.92 0.92
Top Internal Width Meter 345 345 345 345 345 345 345
ft. 1.13 1.13 1.13 1.13 1.13 1.13 1.13
Outside Ladder Internal Width Meter 410 410 410 410 410 410 410
ft. 1.35 1.35 1.35 1.35 1.35 1.35 1.35
Stability Bar Width Meter 727 811 952 1021 1105 1190 1190
ft. 2.39 2.66 3.12 3.35 3.63 3.90 3.90
